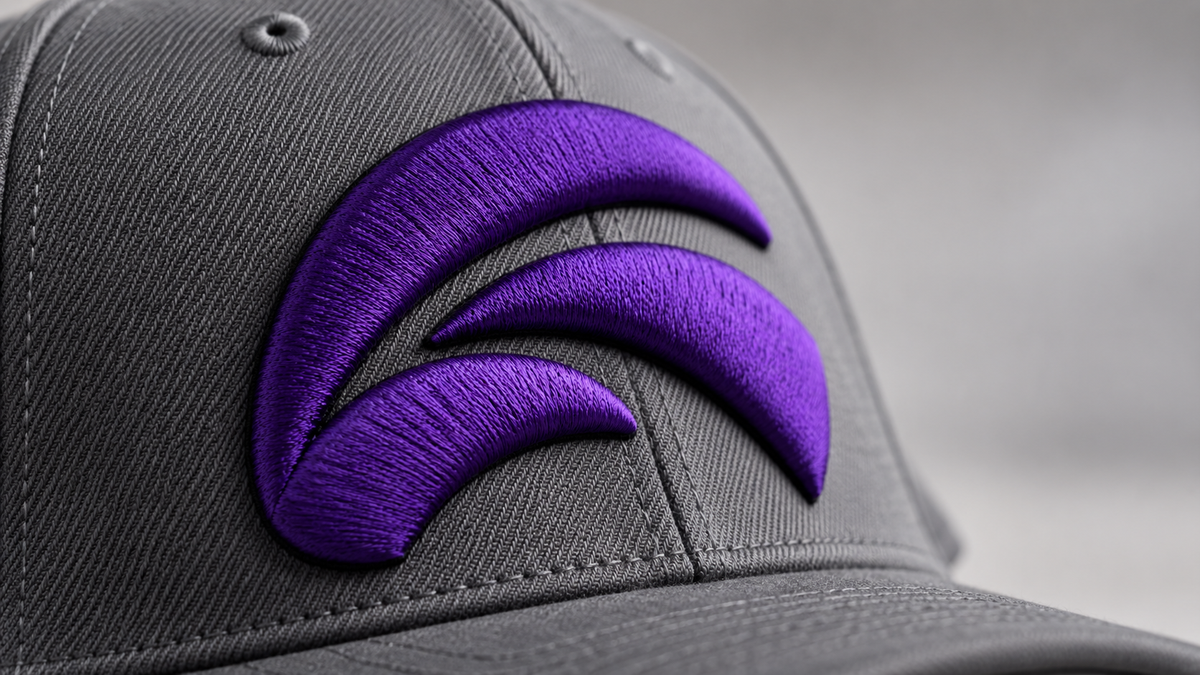

Bold, tactile and impossible to overlook, 3D puff embroidery has become one of the most popular ways to add impact to caps, sweatshirts, jackets and branded clothing. By raising selected areas of a design above the surface of the fabric, the technique gives lettering and logos a more substantial, premium appearance. However, achieving a crisp result involves more than simply placing foam beneath a standard embroidery design. From choosing suitable artwork to adjusting your machine settings, here is what you need to know about 3D puff embroidery.
What is 3D puff embroidery?
3D puff embroidery, sometimes called raised embroidery or foam embroidery, uses a layer of specialist foam to create height beneath the stitches. Although it is sometimes described as foam backing, the foam is actually placed on top of the garment during embroidery. Dense satin stitches sew over the foam, compressing it and securing it beneath the thread. Once the design has finished, the excess foam is torn away to reveal the raised effect. The result is embroidery with greater depth, texture and visual impact than a traditional flat design.
Why is 3D puff embroidery trending?
Texture is playing an increasingly important role in garment decoration. Customers want products that feel distinctive and considered, and 3D puff gives even a simple design a strong, premium finish. It is particularly popular for:
- Streetwear and fashion collections
- Baseball caps, snapbacks and beanies
- Sportswear and team merchandise
- Branded workwear
- Hoodies and sweatshirts
- Initials, monograms and personalised products
- Limited-edition merchandise
The style also works well with the current trend for bold typography, varsity-inspired graphics and retro sports branding. A compact word mark or set of initials can become the main feature of a garment without relying on a large design or multiple thread colours. Raised embroidery also photographs well, making its texture easy to highlight in e-commerce images and social media content.
What designs work best for 3D puff embroidery?
The strongest puff embroidery designs tend to be bold and relatively simple. Good choices include:
- Block lettering
- Wide satin stitch columns
- Numbers and initials
- Monograms
- Simple geometric shapes
- Compact logos with clearly defined sections
Small lettering, thin outlines, sharp corners and intricate details are more difficult to cover cleanly with foam. Narrow areas may not produce enough height, while tiny gaps can trap visible pieces of foam. If a logo contains both bold and detailed elements, consider combining techniques. The main lettering can be produced in 3D puff, with smaller wording or intricate details completed in flat embroidery.
Which garments are suitable?
3D puff embroidery generally performs best on firm, structured or medium-to-heavy fabrics that can support the additional stitch density. Popular choices include structured caps, heavyweight sweatshirts, jackets, bags and workwear. Lightweight, delicate or highly stretchy garments may distort under dense stitching, so the complete combination of fabric, backing, foam and design should always be tested first.
Remember that the foam creates the height, but it does not replace the embroidery backing. The garment still needs to be stabilised with a suitable tear away or cut away backing.
How to achieve clean 3D puff embroidery
1. Digitise specifically for foam
A standard flat embroidery file should not simply be run over foam. The design needs to be digitised specifically for the technique. Satin stitch borders should be sufficiently tight and condensed to cover the foam and create a clean edge. Open ends also need capping stitches to prevent the foam from showing through. If the design combines flat and raised embroidery, the flat sections are usually stitched first. The machine can then stop so the foam can be positioned before the puff section begins.
2. Choose the right foam
The foam must be firm enough to retain its height while remaining easy for the needle to penetrate and the operator to remove. ETC 3D Hard Embroidery Foam is a specialist compact foam designed to tear away cleanly without stretching or pulling. It is 2–3 mm thick and supplied in 75 × 50 cm sheets. Where possible, choose a foam colour close to the embroidery thread. Good stitch coverage should conceal the foam, but a similar colour makes any tiny remaining fragments less noticeable.
3. Stabilise and frame the garment
Select a backing that suits the garment and the density of the finished design. Firm, stable fabrics may work well with tear away, while knitted, stretchy or less stable garments will usually need the lasting support of cut away backing. Frame the garment and backing securely, keeping the fabric smooth without overstretching it. The foam is then laid over the embroidery area inside the frame; it does not need to be caught within the hoop itself. If the foam moves during positioning, a light application of temporary adhesive spray can help hold it in place.
4. Use the correct needle
The needle must pass cleanly through the thread, foam and garment while helping the stitches cut around the edge of the design. For ETC 3D foam, we recommend using Schmetz SD1 point size 90 needles. Always check the needle regularly and replace it if it becomes damaged or blunt.
5. Adjust the tension and machine speed
If the upper thread tension is too tight, it can compress the foam and reduce the height of the finished design. Reduce the tension as required so the stitching covers the foam without flattening it. Running the machine at a lower speed can also produce cleaner results and reduce unnecessary stress on the thread and needle.
For additional lubrication, apply ETC Fablube Spray to the foam before embroidery. This helps the needles pass through the material more smoothly. Machine settings vary, so test and adjust the tension and speed for your particular design, garment and equipment.
6. Remove the excess foam carefully
Once embroidery is complete, gently tear the excess foam away from the outside of the design. Correct digitising and suitable stitch density should allow it to separate neatly around the stitched edges. Remove any small pieces from enclosed areas carefully, taking care not to pull the stitches or damage the garment.
7. Always run a sample
A test sew-out is essential before beginning a full production run. Check the sample for:
- Consistent height across the design
- Complete thread coverage
- Cleanly sealed edges and ends
- Visible pieces of foam
- Thread breaks or needle damage
- Puckering around the embroidery
- Distorted lettering or shapes
Testing allows you to adjust the artwork, density, tension, speed or backing before committing to the final garments.
Common 3D puff embroidery problems
Foam is visible around the edges
The stitch coverage may be too light, the satin columns may not be wide enough or the ends may not be properly capped. Review the digitising and consider using foam closer to the thread colour.
The design looks flat
Check that the thread tension is not compressing the foam too heavily. The design may also need wider satin columns or a more suitable foam thickness.
Small details are losing definition
Fine lines and small lettering are generally better suited to flat embroidery. Simplify the artwork or reserve the raised effect for the largest elements.
The fabric is puckering
The garment may require stronger or more permanent backing. Make sure it is framed securely without being stretched and review whether the fabric can support the density of the design.
The thread or needles keep breaking
Reduce the machine speed, check the needle condition and confirm that the correct needle type is being used. Applying a suitable needle lubricant to the foam may also help.
Add a new dimension to your embroidery
3D puff embroidery can turn simple lettering and logos into standout designs with texture, depth and a premium feel. The key is to treat it as a specialist embroidery technique: start with suitable artwork, digitise it correctly and test the complete setup before production.
Explore ETC 3D Hard Embroidery Foam, or contact the ETC Supplies team for friendly, practical advice on choosing the right products for your embroidery project.
